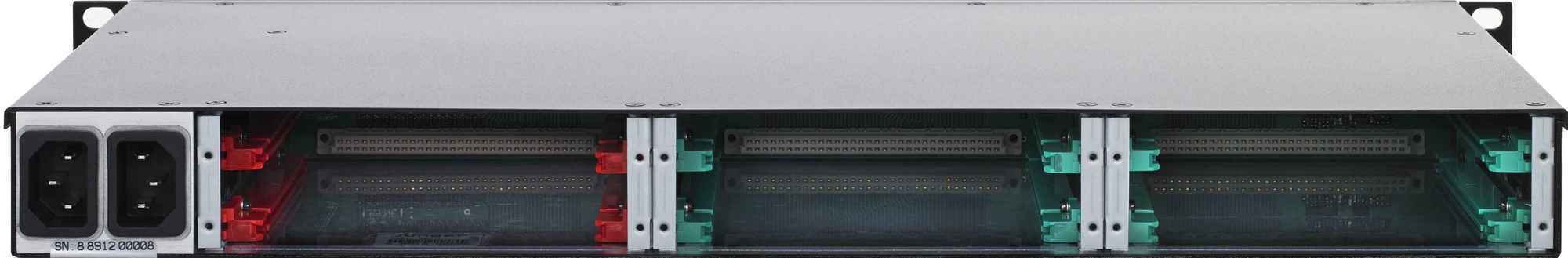

C8000 Frame 1RU
previous image
next image
Key Features
19" / 1RU modular chassis, 240mm depth
Up to 3x 8HP or 6x 4HP space available (one side)
Up to 6x C8000 processing, codec or interface modules
Front or rear rack mounting
Redundant internal power supplies, IEC sockets with mains filters
