Level Magic processor / 5.1 Upmix - C8092

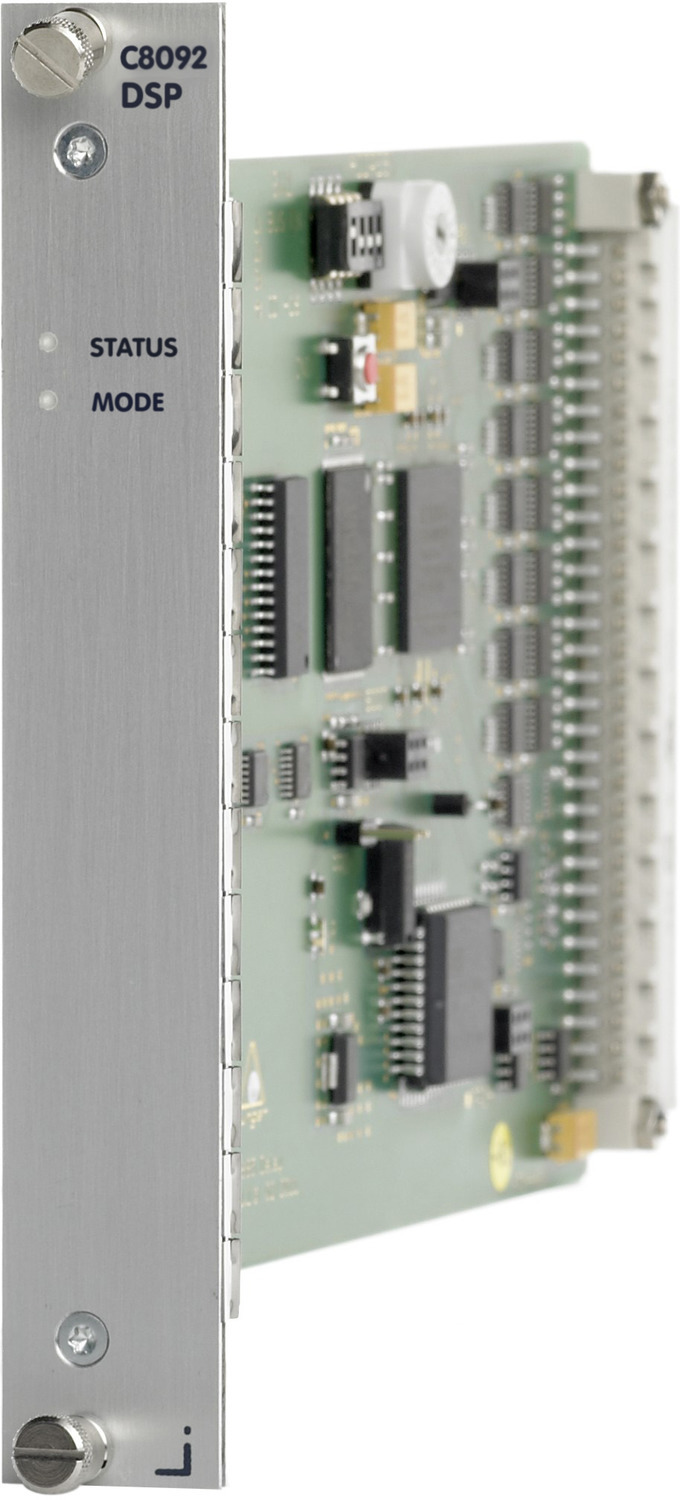

The C8092 is a multi purpose audio processing card that combines Level Magic loudness management, full dynamics processing, true peak limiting, delay and optional 5.1 Upmix/Downmix. It replaces the previous C8086+, C8087 and C8685 cards.

    Based on a unique multi-loop control principle, the Level Magic algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. Level Magic combines three major gain changing elements:

    • • Adaptive AGC
    • • Transient Processor
    • • Distortion-free true peak limiter

    • The adaptive dynamic section includes an expander and upward compressor.

    With the optional Upmix license, the unit can be set to detect stereo only content and automatically upmix to 5.1 in order to maintain a constant surround experience. Existing 5.1 content will pass untouched.

    C8092  Level Magic™ processor / 5.1 Upmix Feature Set
    C8092 Level Magic™ processor / 5.1 Upmix Feature Set

    Key Features

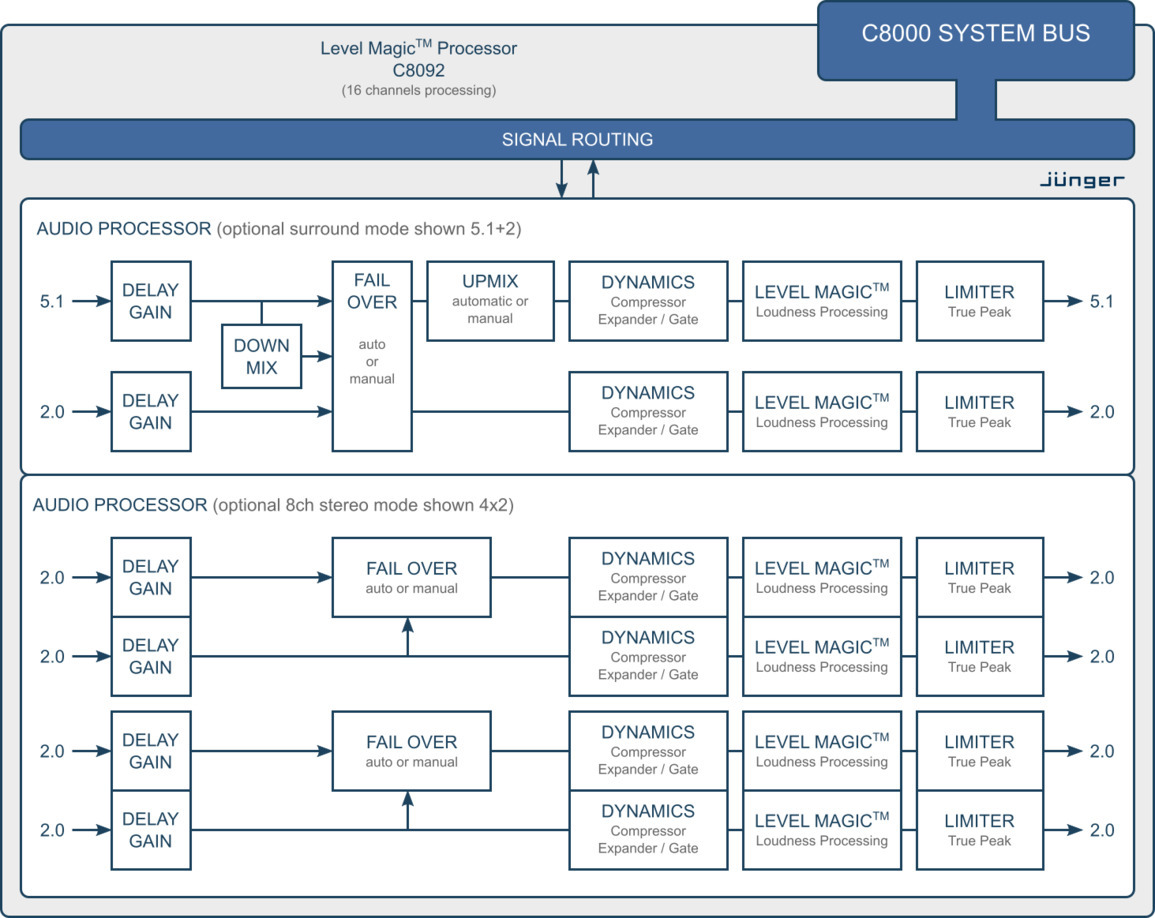

    C8092 Processing Block Diagram
    C8092 Processing Block Diagram
    • Level Magic Loudness Management for up to 16ch according to: ITU-BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Expander / Compressor / Delay
    • Brick Wall True Peak Limiters
    • C8000 Bus Interface

    Versions & Options

    • Upgrade to 8ch, (4x 2.0) audio processing
    • Upgrade to 16ch, (8x 2.0) audio processing
    • Upgrade to 8ch, (5.1+2.0) or (4x 2.0), mixed mode stereo and surround/upmix
    • Upgrade to 16ch, 2x [(5.1+2.0) or (4x 2.0)], mixed mode stereo and surround/upmix
