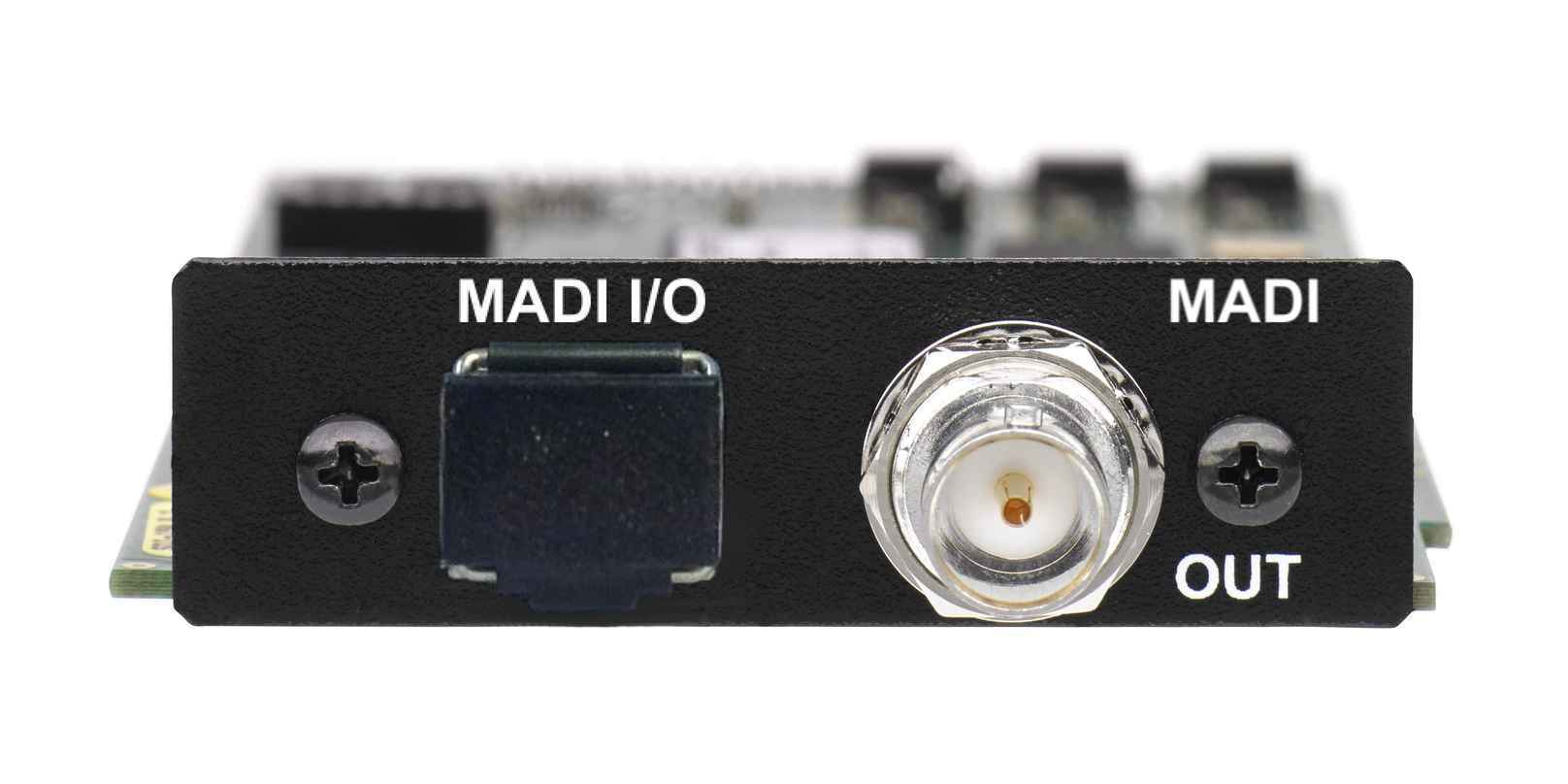

Option Board MADI I/O (optical LC, Multimode)

The Option Board MADI I/O - accessory module designed for the SLIM LINE and flexAI processing platforms - providing 8ch (D*AP4), 16ch (D*AP8) 64ch (AIXpressor) MADI digital audio inputs and outputs.

Option Board MADI I/O (LC)

Key Features

  • MADI digital audio, optical LC (Multimode)
  • D*AP8 hardware platform: 16ch in/out (44.1 / 48kHz)
  • D*AP4 hardware platform: 8ch in/out (44.1 / 48 / 88.2 / 96 kHz)
  • AIXpressor hardware platform: 64ch in/out (48kHz)
  • Dedicated routing 64x64

More Features:

  • Reference grade word clock recovery from MADI

Versions & Options

  • D*AP4 hardware platform: one option slot available for this option board
  • D*AP8 hardware platform: two option slots available for this option board
  • AIXpressor hardware platform: four option slots available for this option board
  • This option board is available for all products listed in Accessories below this page.
