Option Board 8ch analog Out

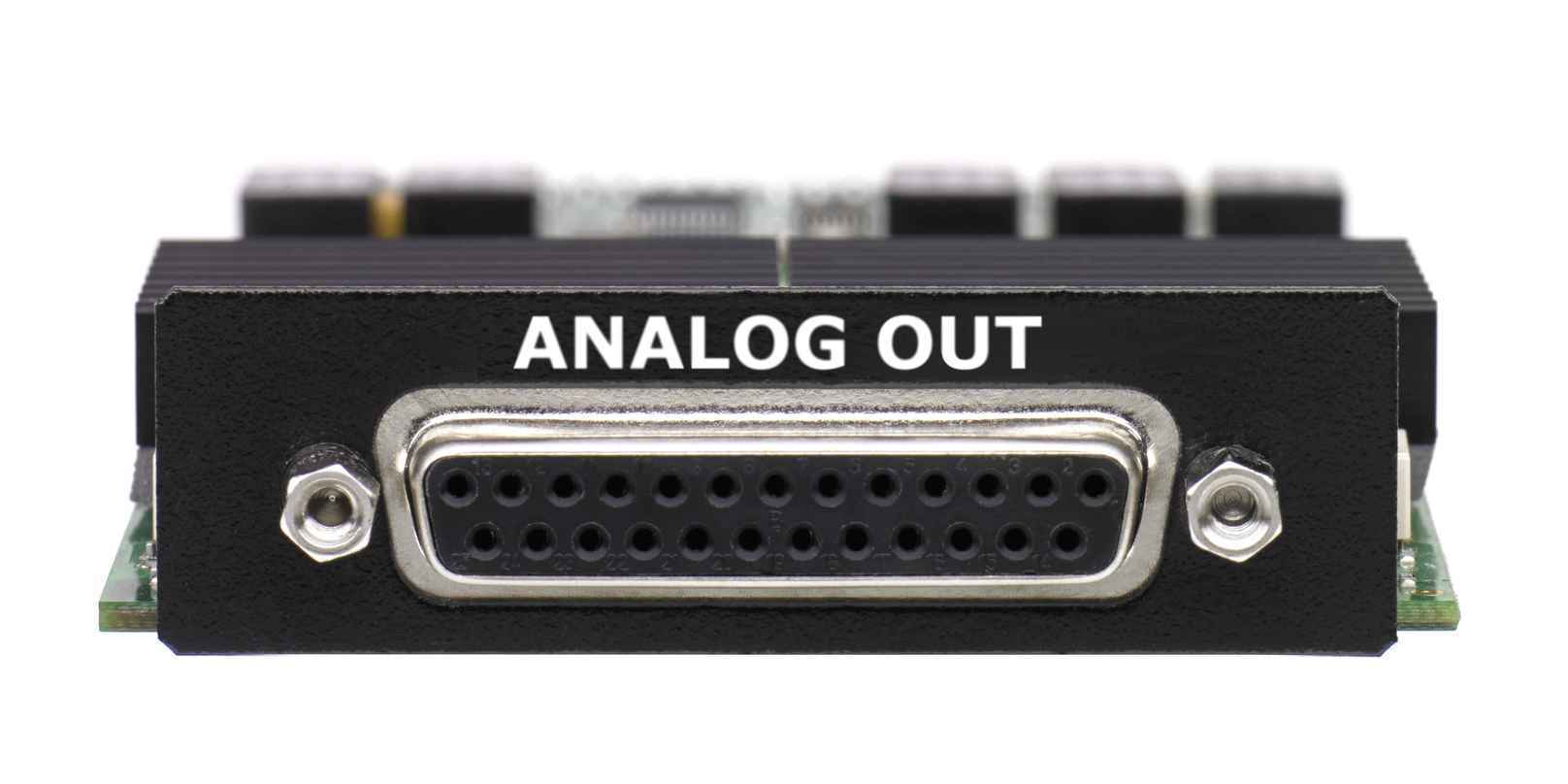

The Option Board 8ch analog Out is an I/O - accessory module designed for the SLIM LINE processing platforms - providing 8 analog outputs on a D-SUB25 connector.

Option Board 8ch Analog Out

Key Features

  • 25pin Sub-D female Connector
  • impedance: 5 Ω, electronically balanced
  • max. output level @ 0 dBFS: 0.0 dBu … +24 dBu adjustable in 0.5 dB steps
  • dynamic range: 110 dB
  • THD+N @ -1 dBFS: 92 dB
  • frequency response: 20 Hz … 22 kHz (+/- 0.25 dB)
  • crosstalk @ 20 kHz: > 100 dB
  • gain mismatch balanced / unbalanced: < 0.3 dB

Versions & Options

  • D*AP4 hardware platform: one option slot available for this option board
  • D*AP8 hardware platform: two option slots available for this option board
  • This option board is available for all products listed in Accessories below this page.
