High Density Board (Legacy)

Please note: this product was already discontinued (EOL) and is not available any more.

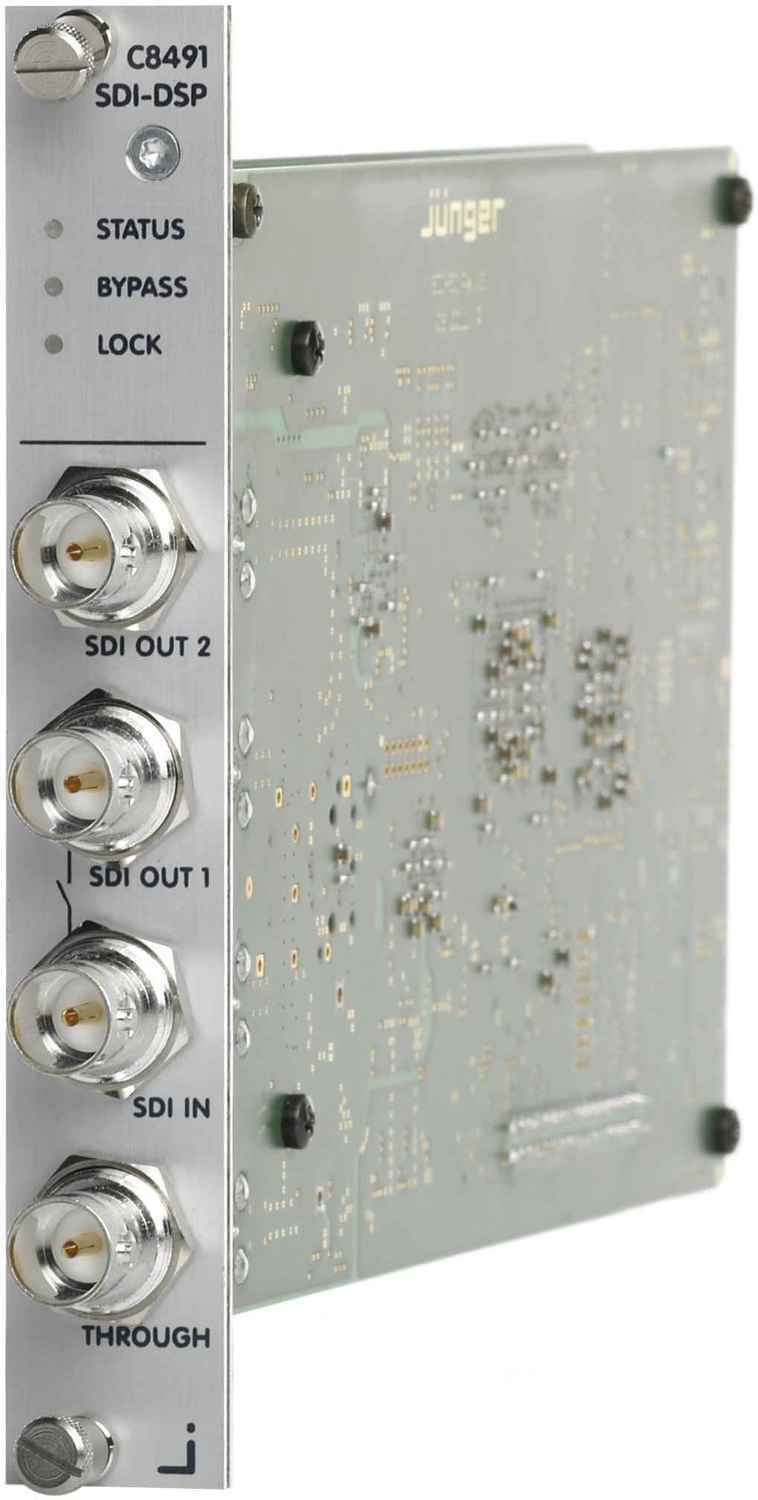

    The heart for all high density systems is the C8491 SDI/DSP board. It combines SDI embedding and deembedding capabilities with DSP processing functionality in one single module.

    This new module combines powerful compact processing with an efficiency and flexibility never seen before. Designed for extreme compact multi-stream systems these modules will add the following features in one single module:

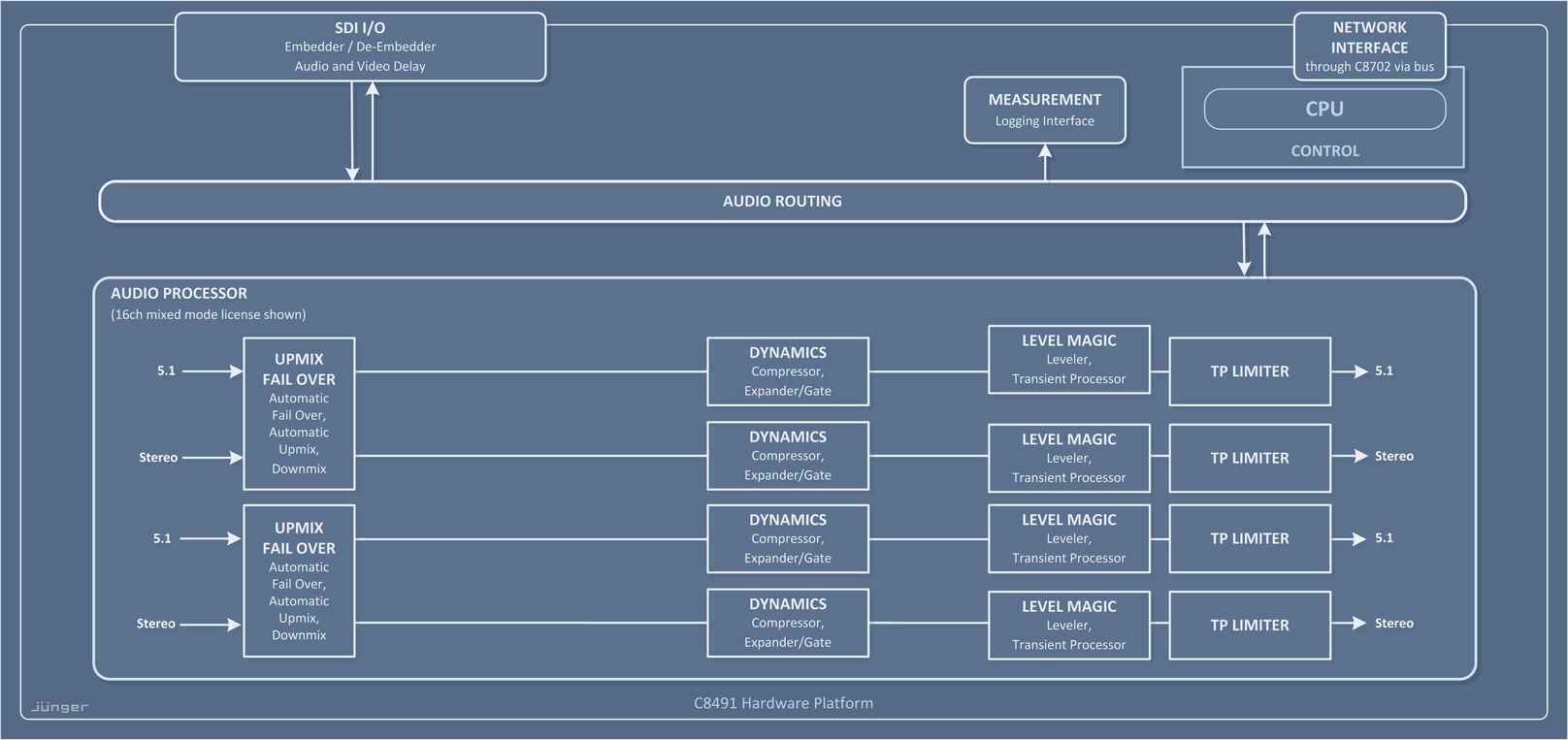

    C8491 Block Diagram
    C8491 Block Diagram

    Key Features

    • SDI (3G/HD/SD) embedder and deembedder for 16 audio channels
    • Level Magic II™ loudness management for up to 16ch according to: ITU-BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Stressless processing of unlocked SDI streams
    • Setup and configuration via web interface

    More Features:

    • Surround upmix functionality
    • Dynamics with compressor and expander/gate
    • Power-fail bypass relays for SDI signal
    • Up to 4 modules in one 1RU frame
    • Up to 16 modules in one 3RU frame

    Versions & Options

    • Upgrade to 8ch, (4x 2.0) audio processing
    • Upgrade to 16ch, (8x 2.0) audio processing
    • Upgrade to 8ch, (5.1+2.0) or (4x 2.0), mixed mode stereo and surround/upmix
    • Upgrade to 16ch, 2x [(5.1+2.0) or (4x 2.0)], mixed mode stereo and surround/upmix

    Applications

    All Jünger Loudness control devices from all product lines share a neat feature: The gathered measurement data is made available for downstream measurement applications via Ethernet. Learn more about at SOFTWARE APPLICATIONS.

    • Jünger Application Manager - J*AM
      System: MS Windows™
      download (ZIP, 23.4 MB)
      Changelog 2.10.19.42350 (2017-08-31):

      ATTENTION!

      Before installing the J*AM / Loudness Logger software under Windows 10, please download and install the latest Sentinel dongle GUI runtime environment:

      https://supportportal.thalesgroup.com/csm?sys_kb_id=61fb0ee1dbd2e78cfe0aff3dbf9619ab&id=kb_article_view&sysparm_rank=2&sysparm_tsqueryId=29c80d7b1bd49410f2888739cd4bcb91&sysparm_article=KB0018320

      Installing the J*AM / Loudness Logger software without the environment first might lead to critical errors and blues screens!

      Changes 2.10.19.42350:

      • Fixed integration range issue in Log Analyzer

      Changes 2.10.18.41937:

      • Fixed parameter inconsistencies occurred while network interruptions
      • Added support for C8492 PM5 and C8092 PM5
      • Added support for C8702 logger version 6

      Changes 2.10.10.40638:

      • Added support for V*AP v2.0.1

    Manual
